| Brand Name : | MYUAV |
| Model Number : | FC30X |
| Payment Terms : | T/T |
| Delivery Time : | 14 working days |
System Model:FC30X
Versions:V04
1.FC30 UAV long endurance hovering
Ground station continuously provides drone-power electricity for 8 hours of hovering which enables clean / spray work can last long
2.Multiple ways to supply power
20kw max. 380V industrial power supply, generator power supply.
3.High security
Installation replacing one of the original battery packs. If emergency, the backup battery pack can immediately take over the power supply.
1. The system retains only the input switch, high-voltage switch and cable-recovery knob, which is simple to operate and can be rapidly deployed. Users only need to operate the drone, which can greatly improve operational efficiency and safety;
2. The product is integrated, high power density, miniaturized, lightweight, modular and intelligent design, easy to move and carry;
3. The on-board power supply adopts voltage regulator circuit scheme, wide range input, constant voltage regulator output, continuous and stable power supply (the backup battery is only used for safe forced landing, and can be configured to have enough capacity for safe landing), which breaks through the limitation of the flight duration;
4. The power supply in the base station adopts isolation circuit design to ensure the safety of high-voltage power transmission.

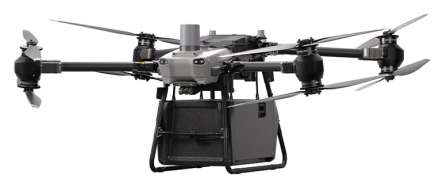

1.FlyCart 30 DJI drone

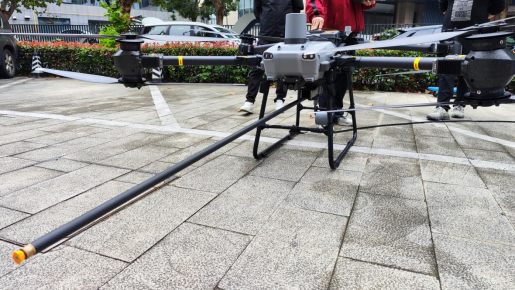

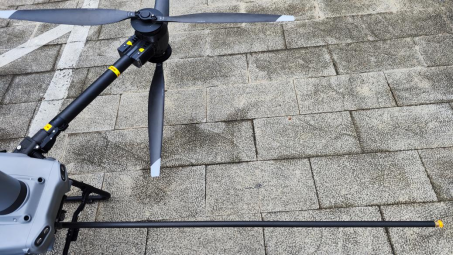

2.Wash/spray payload system
3.FC30X Onboard Power Supply together with 70m Cable Tethered Base Station
4.Ground pump by customers
5.Min.200L Water tank and 380V min.20kw power by customers
DJI FC30 drone, parameters and configurations are detailed on the DJI website
Cleaning Spraying Payload System | Nozzle type | 0° direct spray strong decontamination (removal stubborn) 15° Sector glass cleaning (efficient cleaning) 360° Rotary cleaning (surface removal) |
| Ground pump | Air-End out 23.5 MPa / 235bar | |
| Maximum spray flow | 900L/hr | |
| Work time | 8 hrs |
| Integrated Ground Tethered Base Station | Onboard power supply original battery design |
 |  |
 |  |
Performance indicators
1.1. Environmental characteristics
| Project | Technical Parameters |
| Supported TakeOff weight | 120kg |
| Supported Flight Height | 200m |
| Working Temperatures | -20～45℃ |
| Storage Temperatures | -40～65℃ |
| Working humidity | 10～80%RH |
| Storage humidity | 5～90%RH |
| Altitude | ≤2000m |
1.2. Technical parameters
| Project | Technical Parameters | |
| Tethered station | Input Voltage | AC 380±10%,3-phase system |
| Output Voltages | Rated DC1000V | |
| Output Power | Rated 20kw,Max.30kW | |
| Take-up Speed | 0～3m/s adjustable | |
| Size | L×W×H: External dimensions size 68.6x44.8x49.2cm | |
| Weight | 60kg(including tethered cables) | |
| Material | Aviation Aluminum Alloy | |
| Tethered cable | Operating Current | Max.20A |
| Tensile Strength | ≥300kg | |
| Cable Length | 70m-100m | |
| Onboard power supply | Input Voltage | DC 1000V |
| Output Voltages | DC 14S 58.8V Constant Regulated Output | |
| Output Power | 15kW(Rated Long-Time Power) | |
| Size | L×W×H:316×152×320mm | |
| Weight | 8kg | |
| Installation | Replacement of one FC30 drone battery, plug and play | |
| protective function | In tethered power mode, the vehicle can fly and land normally if the power supply is interrupted during flight. | |
| Battery pack protection | Yes, it can absorb the reverse electromotive force when landing to prevent blowing up the machine, Requires a full battery pack before use | |
| Transportation size | 94*63*74cm G.W. 96kgs | |
Karcher HD 9/25G Classic with 50m extension tube
Max pressure (bar) 300
Working pressure (bar) 250
Water flow (L/h) 900
Maximum inlet temperature (Celsius) 60
Size (mm) 875*538*702
Net weight (kg) 50
Connection load (kW) 8.5
Oil tank (L) 6.5
|
|
