Medium Tethered UAV System

System Model:M10

1. System Configuration

• 14S UAV
• 10kw 14S Airborne Power Supply
• 380VAC, 300m Tethered UAS Base Station

2. Constituent parameters

• UAV

​

Model MH30

Material Carbon Fibre + Aerospace Aluminium Alloy

Number of rotors 6 rotors

Wheelbase ≤1920

Expanded size (mm) 1780*2070*800

Folding size (mm) 1000*1250*800

Empty weight ≤18.5KG(without battery)

Maximum load ≤30KG

Maximum take-off weight ≤58KG

Maximum flight speed ≤18m/s

Maximum ascending speed ≤5m/s

Maximum descent speed ≤4m/s

Maximum take-off altitude 4000m

Empty endurance ≥35min

30kg endurance ≥10min

Positioning system GPS positioning + RTK

Power system High efficiency FOC power

Propeller size 34 inch folding propeller

Power Battery 14S 28000mAh*1

Charger Intelligent super fast charger

Remote control 11 inch screen

Standby time of remote control 8-12 hours

Transmission distance 5km-10km (upgradeable)

Safety wind speed ≤6

Working Temperature -20℃ to 50

Body protection grade IP65

• Air Power Supply

​

Onboard Power Supply	Parameter
External Dimensions (with heat sink)	25.2 x 14.4 x 5.9cm
Weight	2100g
Rated Power	10kw
Rated Input Voltage	1000VDC
Rated Output Voltage	58VDC / 14S
Duration of flight	24 hours (rated load, tethered power mode)
Conversion efficiency	94%
Overcurrent protection	Output current greater than 175A, automatic protection of on-board power supply
Over-voltage protection	Yes
Output short circuit protection	Yes, Recoverable
Over-temperature protection	120℃
Power failure protection	In tethered mode, the aircraft can fly and land normally if the power supply is interrupted during flight
interface Vo+ / Vo-(BAT+ / BAT-): QS8 connector female *2 sockets DC output port for connection to drone inputs Connect either socket to the drone's onboard battery for backup power supply. Vin+ / Vin-: Male XT90 connector High-voltage DC input for cables connected to ground tethered base station

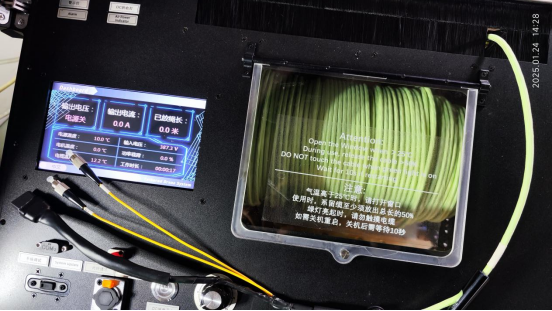

• Tethered Base Station

​
