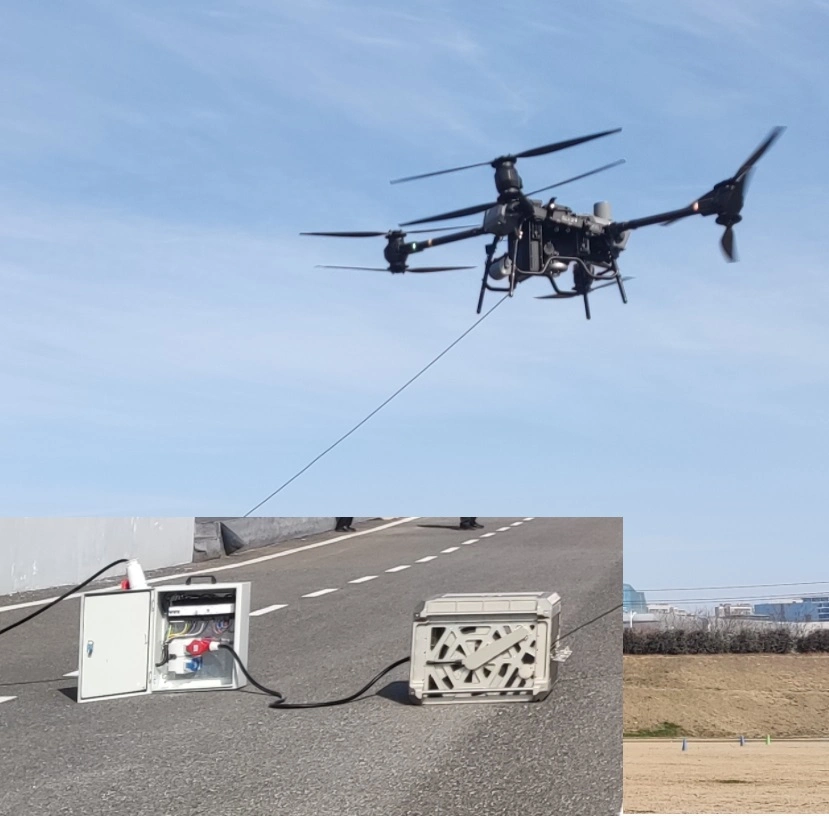

Tethered Power Drone DJI FlyCart 30 at Good Price FC30

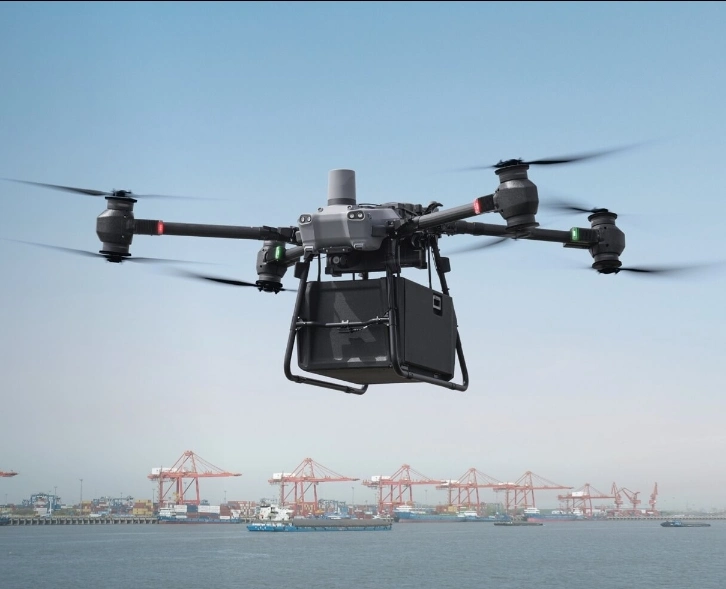

Before we introduce our DJI Flycart30 Tether power system,let's know some information for DJI Flycart30,on January 10, 2024, Dji , the world's leader in civil drones and creative camera technology, introduces DJI FlyCart 30 (FC30) to the global market. This delivery drone overcomes traditional transport challenges with its large payload capacity, long operation range, high reliability, and intelligent features. Now delivery, such as mountain transportation, offshore transportation, or emergency rescue transportation, can be performed with more efficiency and flexibility.
"From agriculture to construction management and surveying, DJI's industrial-grade drones have transformed industries by improving safety for workers and productivity for businesses," said Christina Zhang, Senior Director of Corporate Strategy at DJI. "We are optimistic that FlyCart 30 will become a trusted solution for aerial delivery, solving complex terrain and terminal transportation problems efficiently, economically, and most importantly, safely from the air."
DJI FlyCart 30 (FC30) has many features:
Firstly:Long-range heavy payload capacity.Secondly:Ready for multiple environmental scenarios. Thirdly:Increased operational safety.Fourthly"Flexible configurations for different transportation scenarios.Fifthly:A full software suite to make drone delivery easy.

Tethered Power Drone DJI FlyCart 30 at Good Price FC30

Typical characteristics

1. Easy to operate, no need to operate during UAV flight.
2. Comprehensive protection function, capable of self recovery.
3. Fully automatic cable reel in/out function, allowing manual retract in case of power loss.
4. The air module power supply has a constant voltage output, and the backup battery has no charging or discharging or power loss phenomena.

Adaptive drone

1. Support flight duration: ≥ 24h
2. Support flight altitude: ≥200/300m, (tethered cable 200/300m, reserved safety length).
3. Optional task payloads: floodlights, spotlights, tweeters, aerial suspension systems, communication base stations, etc.

Parameters

Items		Technical parameters
Ambient temperature		-20~45 ºC (working), -40~65 ºC (storage)
Relative humidity		10-80% RH (working), 5-90% RH (storage)
Altitude		≤ 3000m

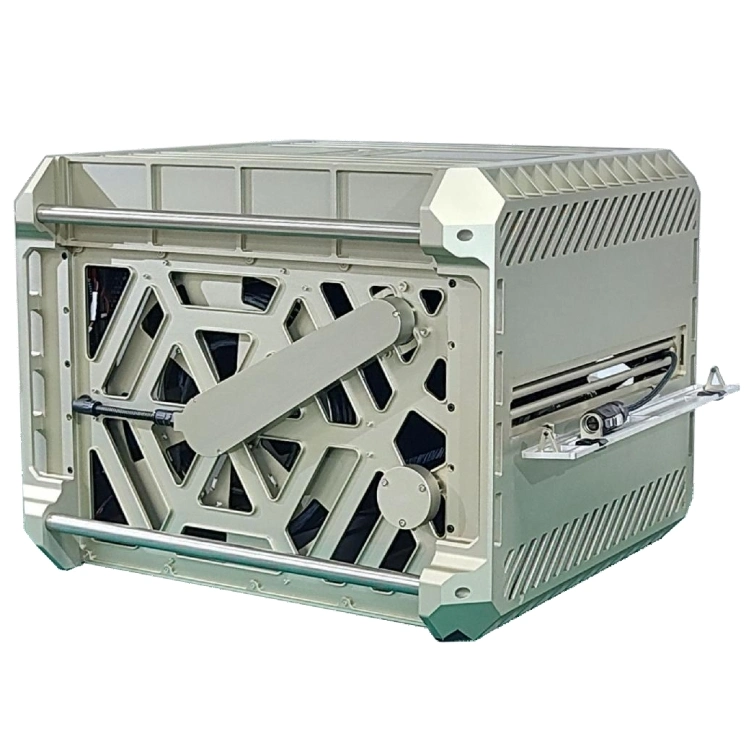

Tethering power module	Input voltage	380 ± 10% VAC, three-phase five wire system, frequency 50Hz
	Output voltage	600-800Vdc adjustable, factory default 800Vdc
	Output power	≥ 25000W (rated long-term output), ≥ 30000W (peak value ≤ 30s)
	Retraction speed	0-3m/s, adjustable
	Reel in/out tension	0-20N, adjustable
	Interface	Input aviation plug, cable output LP20 aviation plug, fiber optic FC port (optional)
	Buttons and switches	AC switch, high-voltage on/off button, cable forced take-up button, backup power switch
	Protection	IPx4
	Size	600×570×460±0.5mm, excluding foot pads and external accessories
	Weight	54±0.5kg, excluding tethered cables
Tether cable	Material	Alloy lightweight high-temperature resistant aviation wire, composite fluoroplastic insulation layer, high modulus tensile aviation grade fiber woven layer
	Optical Fiber	Tethered cable is an optoelectronic composite cable, contains tightly wrapped single-mode fiber and can be optionally equipped with fiber optic communication
	Current	25~30A
	DC resistance	1.6 ± 0.1 Ω, 100m@20 ºC loop
	Tensile strength	≥ 300kg, resistant to repeated retraction and release times ≥ 1000
	Insulation strength	≥ 3500Vdc, no breakdown for 1 minute
	Cable length	Standard 220m, optional 330m
	Outer diameter	6.3±0.1mm
	Weight	44±1g/m
Air module	Input voltage	580-810Vdc wide range input
	Output voltage	59Vdc ± 1%, constant stable output, supports voltage customization
	Output power	≥ 19200W (rated long-term output), ≥ 23000W (peak value ≥ 10s)
	Protection function	Input overvoltage and undervoltage protection, output overvoltage, overcurrent, short circuit, and over temperature protection
	Isolation voltage	≥ 3000V (Vin Vout), 1min, leakage current 5mA, no breakdown, flashover, or corona phenomenon
	Installation method	Replace a drone battery and install it directly by plugging and unplugging it
	Heat dissipation method	Built in fan for active cooling, reserved air duct for forced air cooling
	Interface	Input LP20 aviation plug, output XT90, XT60 ×2
	Protection	IP54
	Size	468 × 308 × 142 ± 0.5mm, excluding handles and connectors
	Weight	9.8 ± 0.2kg (replace one 11.5kg drone battery)

1. Unless otherwise specified, the above data are all tested at Ta=25 ºC, humidity<75%, nominal input, and rated load.
2. Due to space limitations, there is incomplete data in the table. If necessary, please contact our sales personnel to obtain it.

For drone tethered power system,you can choose several types from below form:

-Day and night missions
-Radio relay
-Crisis management
-Site protection
-Traffic surveillance
-Large-scale events security
-Forest surveillance
-Industry monitoring
-Air-quality monitoring

1. More rotor unmanned aerial vehicle (UAV) is of certain danger and destruction, improper operation may cause personal injury or property damage, please use the product in strict accordance with the operating manual
2. The operator should receive professional training and examination, untrained personnel do not handle this product
3. Don't be drunk, poor state of fatigue, sick when handling this product
4. Must keep personnel with safe distance between unmanned aerial vehicle (UAV), constantly to prevent the possibility of danger
5. Please fly under the safe take-off weight, in case of any risks.
6. Please not fly under strong electromagnetism interference circumstance
7. Please follow the local laws and regulations and not fly in no-fly zone
8. Please not keep close or touch the rotating motor or propeller, in case cut by the rotating propellers.
9. Please charge the two batteries full before install them to the uav, and make sure their differential pressure less than 0.1 V
10. The battery long time no use, please store it in ventilated dry place with 60% electricity

Q1: Do you support OEM/ODM?
A1: Yes. We can print your logo on the product.
Q2: About samples.
A2: Under normal circumstances, samples will be ready within 7 days, and 10-20 days for OEM/ODM orders. Sample fee and shipping will be charged.
Q3: What is the delivery time?
A3: For regular orders, we can ship within 15 days, for OEM/ODM, we can ship within 25-45 days (depending on the quantity). In the event of delays, we will notify you in advance of the status and resolution.
Q4: What is the minimum order quantity?
A4: There is no MOQ for wholesale (1 piece accepted), including OEM/ODM.
Q5: Can you reduce the shipping cost?
A6: When calculating the shipping cost for you, we always choose the cheapest and safest express. Although we have partnerships with shipping companies, we can't keep costs down because it's not us who get paid. If you think it's expensive for you. You can always make your own choice.

Myuav's products are mainly used in tethered lighting, communication relay, environmental monitoring, and other fields. In the domestic market, the company has accumulated a large number of customers, including leading companies in the power, communication, environmental protection industries, and has obtained more than ten patent authorizations.

In the international market, we have established long-term cooperative relationships with multiple overseas companies and has conducted business in Europe, the Middle East, America and other regions.

MYUAV aims to build solid products and services, committed to providing high-standard tethered drone system solutions for global customers.
