| Brand Name : | Myuav |
| Model Number : | TPS55M-M3 |
| Price : | 4350USD |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
The tethered power station by the ground power supply and delivers
electric energy to the drone platform in the air through the
tethering cable,it can realize 12-hour uninterrupted hovering of
the drone in the air, and is easy to operate, with one-button
automatic take-off and landing.
I,Strengths

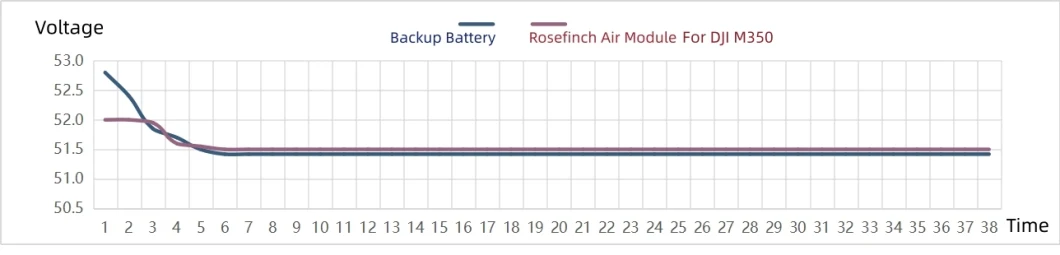

5.The air module power supply has a constant voltage output,and the
back-up battery has no charging or discharging phenomenon
throughout the entire process.
II,Adapted to DJI Mavic 3
1.Supporting flight duration:≥12h.
2.Supporting flight altitude:≥30m(Retention of safe length).
3.Optional lighting group:200w
III,Functional characteristics
1.Protection functions:Separate design for strong and weak
electricity.Input overvoltage and undervoltage protection.input
undervoltage,input overvoltage,output overvotage,overcurrent,short
circuit,over temperature protection,input and output voltage
resistance≥3000VDC,tethered cable insulation voltage
resistance≥3500VDC.
2.Automatic take-up and payoff: passive payoff, push-button
automatic take-up, and manually press the button to reaction the
cable while power cut off.
3.Carrying and transporting:Equipment portability,with a backpack
design,it can be equipped with a complete set of tethered power
system.
4.Power supply is optional 1800W/3500Wh,outdoor mobile power supply
or 1200W/2.5L gasoline inverter generator (specification attached).
IV,Parameters
| Items | Technical parameters | ||
| Model | TPS33M-M3 | TPS55M-M3 | |
| Cable length | 33M | 55M | |
| Ambient temperature | -20~45ºC(working),-40~65ºC(storage) | ||
| Relative humidity | 10~80%RH(working),5~90%RH(storage) | ||
| Altitude | ≤3000m | ||
| Ground power module | Input voltage | 190~240Vac wide range input,single-phase 220Vac,frequency 50/60Hz | |
| Output voltage | 360~400Vdc adjustable,factory default 400Vdc | ||
| Output power | ≥800W(rated long-term output),≥1000W(peak value≮30s) | ||
| Interface | Input 3-pole socket,cable output XT60 connectors | ||
| Button | High voltage button,take-up button | ||
| Protection level | IPx4 | ||
| size | D265×W150×H175±0.5mm,excluding foot pads and handles | ||
| weight | 4.3±0.2kgkg,including tethered cable | ||
| Tethered cable | material | Silver-plated lightweight high-temperature resistant aircraft wire, composite fluoroplastic insulation, high-modulus tensile aerospace-grade fiber braid. | |
| carrying capacity | 1~1.5A | ||
| Direct Current Resistance | 38±0.5Ω,100m@20ºCloop | ||
| Resistance tensile strength | ≥50kg.Resistant to repeated reaction and release times≥500 | ||
| Insulation strength | ≥3500Vdc.No breakdown for 1minute | ||
| Cable length | 55m | ||
| External diameter | 2.0±0.1mm | ||
| weight | 4.6±0.2g/m | ||
| Air module power supply | Input voltage | 350~410Vdc.Wide range input | |
| Output voltage | 17.2Vdc±1%.Constant voltage output,supporting voltage customization | ||
| Output power | ≥600W(rated long-term output),≥800W(peak value≮10s) | ||
| Protection function | Input overvoltage,undervoltage protection,output overvoltage,overcurrent,short circuit,over temperature protection | ||
| Isolation voltage | 3000V(Vin-Vout),1min.Current leakage≤5mA,no breakdown ,flying arc and corona phenomenon | ||
| Installation method | Installation: belly slider quick release, need to be pre-installed mounting bracket in the belly (does not affect the storage) | ||
| Heat dissipation method | Passive heat dissipation,natural air cooling of heat dissipation teeth | ||
| Interface | Input XT60,output XT30,Battery interface | ||
| Protection level | IP54 | ||
| size | 105×56×25±0.5mm.Mounting brackets and connectors not included | ||
| weight | 200±10g.External connection and cables not include | ||
| Packaging | Size | 460×350×240±5mm(backpack size),500×400×300±5mm(carton size) | |
| weight | 7.5±0.5kg.Including tethered box,onboard power supply,annexes and documents | ||
1,Unless otherwise specified,the above data are all tested at
Temp=25ºC,humidity<75%,nominal Input and rated Load.
2,Due to space limitations,there is incomplete data in the
sheet.please contact our sales personnel to obtain it.
**FAQ #1**
** Question: **
Does MyUAV's Tethered Drone Station work with the DJI Mavic 3
drone? What advantages does it offer?
** Answer: **
It significantly enhances the functionality of Mavic 3. The
Tethered Drone Station will allow the Mavic 3 to draw long-lasting
power from the ground station via physical cables, making it
possible to fly with unlimited endurance, which is useful for
executive surveillance, search and rescue, field lighting, or other
missions that require extremely long flight times. In addition, the
tether system can also improve the security and stability of data
transmission, especially in the case of high data confidentiality
requirements.
**FAQ #2**
** Question: **
How does MyUAV's Tethered Drone Station for DJI Mavic 3 work and
can it keep the drone hovering in a specific location?
** Answer: **
The system is usually connected to the drone via a high-strength,
lightweight tether, ensuring that the drone is not limited by
battery life during the mission. Because the tethered drone is
attached to the cable while flying, it can theoretically hover at a
fixed point and operate continuously without having to land to
replace the battery, supported by a more powerful ground power
source.
**FAQ #3**
** Question: **
Does using MyUAV's Tethered Drone Station to control the DJI Mavic
3 affect the maximum flight height of the drone?
** Answer: **
Using the Tethered Drone Station will affect the actual maximum
flight height of the DJI Mavic 3, as the drone's flight height will
be limited by the length of the tethered cable. In practical
applications, the cable length of the tethered system will be set
within a safe range to ensure that the UAV will not be damaged or
dangerous due to excessive cable tension during flight. In
addition, taking into account factors such as air resistance, cable
weight, and the location of the ground station, the height of the
tethered drone is usually lower than the maximum flying altitude in
free flight. If MyUAV did design a Tethered Drone Station for the
Mavic 3, it would clearly indicate the applicable maximum tethered
drone height in the product specification.
|
|
