MYUAV UAV M-23X tethered system ADAPTS to DJIM200/M210, Wu2, M300 and M350 13.4kg

Ground base station parameters
Cable length: 100m
Cable take-up and pay-off mode: manual + automatic
Product size: 422 X 350X 225mm
Product weight: 13.4kg
Rated power. : 3000w
Input port: Supports 220V mains input
Operating temperature: -20°C~+55°C
Continuous output: 8h

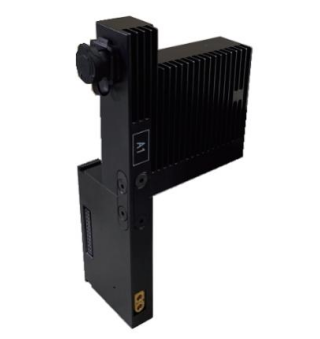

Optional air power supply parameters
Product size: 145X91 X 93mm
Product weight: 500-10g.
Rated power: 2500w
Product size: 181X99 X 56mm
Product weight: 350-10g.
Rated power: 1500w

The UAV tether system can be adapted to multiple UAV platforms, including DJIM200/M210, Wu2 and M300 UAVs, as well as UAVs that support 6S or 12S power supply up to 2500W, simply by replacing the on-board end module for different UAVs. The system consists of an airborne end module and a ground tethered power box. Through high-performance alloy cables, the electric energy is transmitted from the ground to the airborne end module, which is converted into the DC 12S/6S voltage used by the UAV, and sustainable power supply for the UAV. Can be directly connected to the generator

Or 220V mains power, on the basis of safety, the UAV can be left empty for ultra-long voyage. At the same time, the airborne end module provides 48V/24V power interface (automatically switching between battery and power supply), which can be used by other airborne pods, such as mounting lights to achieve emergency lighting at night, mounting relay to restore communication or extend communication distance, mounting camera pods to achieve long-term monitoring.

Product characteristics

▶ Aluminum alloy shell, small size, light weight, total weight 14kg.
▶ Simple operation, one key start high voltage output, one key automatic take-up.
▶ No need to change the aircraft, directly install the on-board end module can be used.
▶ Shell color and text language support mass customization.
▶ Two modes of transport are available: knapsack or trailer.

FAQ

1. ** Q: ** How long can the M-23X Tethered UAV system fly?
** A: ** Maguway's M-23X tethered UAV system uses advanced tethered power technology, which theoretically enables unlimited endurance flight as long as the ground power supply system is adequate and stable. Actual working hours are affected by the length of the tethered cable, the capacity of the power supply equipment, and environmental factors such as wind speed and temperature.

2. ** Q: ** What maximum load weight can the M-23X tethered system support?
** A: ** The design load capacity of the M-23X tethered system depends on the specific model and configuration. Please refer to the product manual or contact Maiuway Technologies for accurate technical specifications to ensure that the drones and other payloads carried do not exceed the maximum capacity of the system design.

3. ** Q: Will the M-23X tethered drone work in extreme weather conditions?
** A: ** The M-23X tethered UAV system has been rigorously designed and tested to withstand severe weather conditions, such as strong winds, low temperatures and rain and snow, within a certain range. However, in order to ensure safe operation and system life, it is important to follow the operating guidelines provided by Maiuway Technologies to understand the adaptability and limitations of the system in different climatic conditions.

Please note that the above FAQ is based on assumptions, and the real product FAQ should be directly derived from the specific product documentation and technical support information published by Maguway Technology. It is recommended that you consult the manufacturer to obtain accurate product performance indicators and instructions before using the product.

Myuav's products are mainly used in tethered lighting, communication relay, environmental monitoring, and other fields. In the domestic market, the company has accumulated a large number of customers, including leading companies in the power, communication, environmental protection industries, and has obtained more than ten patent authorizations.

In the international market, we have established long-term cooperative relationships with multiple overseas companies and has conducted business in Europe, the Middle East, America and other regions.

MYUAV aims to build solid products and services, committed to providing high-standard tethered drone system solutions for global customers.
