MYUAV Powerful Tethered Power Station for Unmanned Aerial Vehicle/Drones

Product overview
This product includes two parts: the ground end tether box and the sky end airborne power supply. The tether box integrates AC/DC DC power supply, automatic take-up and pay-off device, tether cable and intelligent control module to convert single-phase AC power of the mains, generator or mobile power supply into high-voltage power and transmit it to the airborne power supply through the tether cable. The airborne power supply can safely replace an original battery and provide constant voltage stabilization, continuous and reliable long-endurance power supply for the UAV without reducing the standard load weight. The system has the function of automatically retracting and releasing the line synchronously following the rise and fall of the UAV.

Adaptive UAV

1) Support flight height: 120~200m (cable length: 220m, reserved safety length);
2) Support takeoff weight: 30~55kg (UAV force efficiency is different, this data is for reference only).

Environmental characteristics
1) Ambient temperature: - 20~45 ºC (working), - 40~65 ºC (storage);
2) Relative humidity: 10~80% RH (working), 5~90% RH (storage); 3) Altitude: 0~3000m.

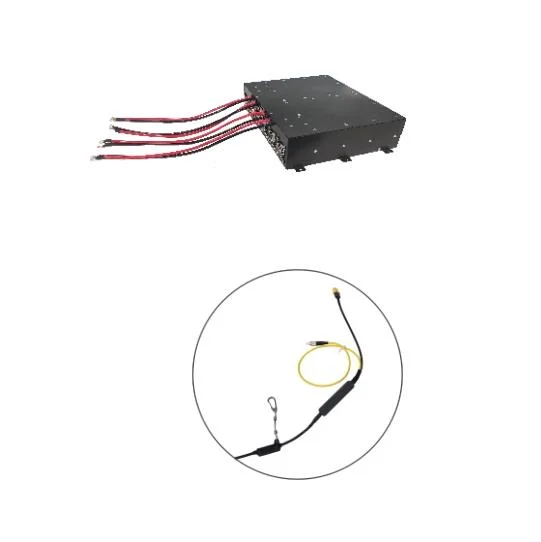

Air module power supply

Protection function
A. Input over-voltage and under-voltage protection: turn-off protection, fault elimination and self-recovery;
B. Output overcurrent protection: constant current step-down protection, fault elimination and self-recovery;
C. Output short circuit protection: output current limiting operation, fault elimination and self-recovery;
D. Output over-temperature protection: the shell temperature is 95 ± 2.5 ºC, and after the cooling and self-recovery;
E. Output overvoltage protection: automatically shut down and lock, restart and power on for recovery;

Tether cable

Ground module power supply

Protection function
A. Input over-voltage and under-voltage protection: turn-off protection, fault elimination and self-recovery;
B. Output overcurrent protection: constant current step-down protection, fault elimination and self-recovery;
C. Output short circuit protection: output current limiting operation, fault elimination and self-recovery;
D. Output over-temperature protection: the shell temperature is 95 ± 2.5 ºC, and the cooling is self-recovery;
E. Output overvoltage protection: automatically shut down and lock, restart and power on for recovery;

Myuav's products are mainly used in tethered lighting, communication relay, environmental monitoring, and other fields. In the domestic market, the company has accumulated a large number of customers, including leading companies in the power, communication, environmental protection industries, and has obtained more than ten patent authorizations.

In the international market, we have established long-term cooperative relationships with multiple overseas companies and has conducted business in Europe, the Middle East, America and other regions.

MYUAV aims to build solid products and services, committed to providing high-standard tethered drone system solutions for global customers.
