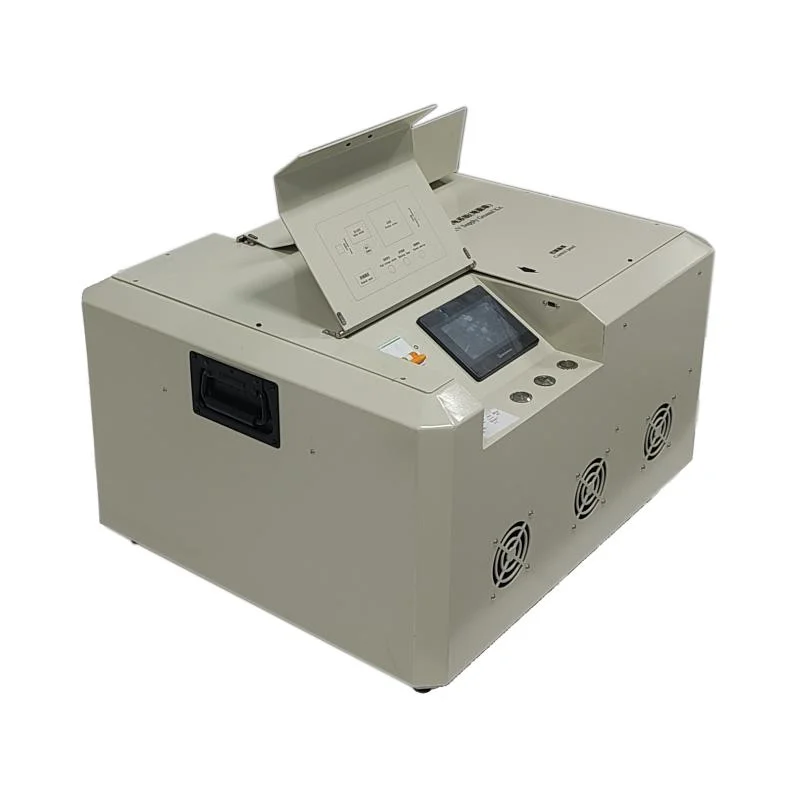

    MYUAV 12000W Tethered Power Supply System For Drones / Uav (Unmanned Aerial Vehicle)

    Ask Lasest Price
    Brand Name : myuav
    Model Number : RTF220M-12000W
    Certification : ISO 9001, ISO 14001
    Price : 23000usd
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 14 working days
    • Product Details
    • Company Profile

    MYUAV 12000W Tethered Power Supply System For Drones / Uav (Unmanned Aerial Vehicle)

    MYUAV 12000W Tethered Power Supply System for Drones/Uav(Unmanned Aerial Vehicle)
    12000W Tethered Power Supply System for Drones/Uav (Unmanned Aerial Vehicle)
    12000W Tethered Power Supply System for Drones/Uav (Unmanned Aerial Vehicle)
    12000W Tethered Power Supply System for Drones/Uav (Unmanned Aerial Vehicle)


    Typical characteristics

    12000W Tethered Power Supply System for Drones/Uav (Unmanned Aerial Vehicle)
    1. Small size, light weight, easy to carry, and fast deployment.

    2. Easy to operate, no need to operate during UAV flight.

    3. Comprehensive input and output protection function, capable of self recovery.
    4. Automatic take-up, and manually rewind when there is no power.

    5. The on-board power supply is output at constant voltage, and the backup battery remains fully charged throughout the entire process without any power loss.
    12000W Tethered Power Supply System for Drones/Uav (Unmanned Aerial Vehicle)


    Adaptive drone

    Support flight altitude≥200/300m (tethered cable 220/300m, reserved safety length)
    Support takeoff weight40-55kg (drone power efficiency varies, this data is for reference only)
    Support flight duration≥ 48h (the system can support working duration, which depends on the structure and electrical fatigue resistance of the drone)


    Functional characteristics

    Cable retraction and release function: Follow the drone's takeoff and landing to synchronously retract and release the mooring cable, adaptively adjust the tension, and manually retract the cable in case of power loss.
    Protection function: Input overvoltage and undervoltage protection, output overvoltage, overcurrent, short circuit, over temperature protection, fault elimination and self recovery.
    Data display function: The 4.0 inch touch screen displays data such as voltage, current, temperature, outlet length, date, time, operation records, fault records, and working status information.
    Setting and adjustment function: The display screen supports the setting and adjustment of wire collection speed, wire collection tension, wire release tension, safety meters, date and time, and supports switching between Chinese and English display.
    Fault alarm function: When the system malfunctions, the display screen scrolls to display fault information, and the fault alarm light flashes red and beeps to alert.
    12000W Tethered Power Supply System for Drones/Uav (Unmanned Aerial Vehicle)
    12000W Tethered Power Supply System for Drones/Uav (Unmanned Aerial Vehicle)




    Parameters

    ItemsTechnical parameters
    Ambient temperature-20~45 ºC (working), -40~65 ºC (storage)
    Relative humidity10-80% RH (working), 5-90% RH (storage)
    Altitude≤ 3000m
    Tethering power moduleInput voltage320-490Vac wide range input, three-phase five wire system 380Vac/480Vac@45-65Hz
    Output voltage600~1000Vdc adjustable, factory default 800Vdc
    Output power15000W (rated long-term output), 20000W (peak value ≤ 30s)
    Storage cable lengthstandard storage cable 220m, supporting maximum storage cable ≥ 330m
    Retraction speed0-3m/s, adjustable
    Reel in/out tension0-20N, adjustable
    InterfaceInput aviation socket, fiber optic FC port (optional), communication Type-C port, cable output XT60 connector
    Buttons and switcheshigh-voltage on/off button, cable strong retraction button, input air switch, alarm indicator light
    Size645× 550× 350± 0.5mm, excluding foot pads
    Weight36 ± 0.5kg, including 220m tethered cable
    Tether cableMaterialAlloy lightweight high-temperature resistant aviation wire, composite fluoroplastic insulation layer, high modulus tensile aviation grade fiber woven layer
    Fiber opticThe tethered cable is an optoelectronic composite cable, which contains tightly packed single-mode fiber optic and can be optionally equipped with fiber optic communication
    Current15-20A
    DC resistance2.3 ± 0.1 Ω, 100m@20 ºC loop
    Tensile strength≥ 300kg, resistant to repeated retraction and release times ≥ 1000 times
    Insulation strength≥ 3000Vdc, no breakdown for 1 minute
    Cable length220/330±2m, supporting customized line length
    Outer diameter5.0 ± 0.2mm
    Weight2.9 ± 0.1kg/100m
    Air moduleInput voltage600~830Vdc wide range input
    Output voltage50 ± 0.5Vdc, constant voltage output, supporting voltage customization
    Output power12000W (rated long-term output), 15000W (peak value ≤ 10s)
    Protection functionInput overvoltage and undervoltage protection, output overvoltage, overcurrent, short circuit, and over temperature protection
    Communication functionCAN communication reports voltage, current, temperature and other data as well as working status information
    Isolation voltage3000V (Vin-Vout), 1min, leakage current ≤ 5mA, no breakdown, flashover, or corona phenomenon
    Installation methodReserved installation ears, fixed with screws
    Heat dissipation methodexternal fan active heat dissipation, reserved air duct forced air cooling
    Interfaceinput XT60, output XT90 × 6
    Protection levelIP54
    Size302 × 200× 68 ± 0.5mm, excluding mounting lugs
    Weight4300 ± 100g, excluding external connectors

    1. Unless otherwise specified, the above data are all tested at Ta=25 ºC, humidity<75%, nominal input, and rated load.
    2. Due to space limitations, there is incomplete data in the table. If necessary, please contact our sales personnel to obtain it.

    12000W Tethered Power Supply System for Drones/Uav (Unmanned Aerial Vehicle)
    12000W Tethered Power Supply System for Drones/Uav (Unmanned Aerial Vehicle)
    12000W Tethered Power Supply System for Drones/Uav (Unmanned Aerial Vehicle)

    FAQ


    1. **Q: What is MYUAV's tethered power station? **.
    **A:** MYUAV's tethered power station is an innovative high-altitude power generation solution that uses tethered drone technology to connect a large drone to a ground power source. The drone carries a small wind turbine or solar panel to fly high into the sky, using high-altitude wind or sunlight resources to generate electricity, and then sends the power back to the ground via tethered cables.


    2. **Q: How does MYUAV tethered power station work? **.
    **A:** The working principle is mainly to use the drone as a platform to lift it to the height that the traditional wind turbine cannot reach, where the wind speed is more stable and strong, thereby improving the power generation efficiency. The UAV receives a constant supply of electricity through high-strength cables attached to the ground to maintain the flight of the UAV and the operation of the power generation equipment.


    3. **Q: How efficient is the MYUAV tethered power station? **.
    **A:** Because the actual data depends on the specific UAV model and the configuration of the power generation equipment, MYUAV may have increased the power generation per unit area through the efficient use of wind or solar resources. Compared to traditional ground-based power plants, high-altitude wind or solar power has a higher power generation potential per unit area, but the exact efficiency figures need to refer to the product performance indicators provided by MYUAV company.


    4. **Q: In what environment can MYUAV tethered power stations operate? **.
    **A:** MYUAV's tethered power stations should be able to operate within a safe range of meteorological conditions, such as avoiding extreme weather conditions, while ensuring the safety and stability of tethered cables. The specific operating environment conditions should be consulted with MYUAV for detailed standards prior to purchase.


    5. **Q: How to recover and maintain tethered UAVs? **.
    **A:** MYUAV may be equipped with an automated or semi-automated recovery system to safely land and recover the teemed UAV if necessary, while performing regular maintenance checks on the power generation equipment on the UAV. The maintenance process may include integrity inspection and repair of the drone body, power system, power generation equipment and tethered cables.

    Again, the above information is based on the general application of tethered UAV technology. For more details about MYUAV's tethered power station products, please contact the company directly for the latest and most accurate product descriptions, performance parameters and service support.
