MYUAV Emergency lighting drone by tether cable supply power continuously 24 hours

Government emergency disaster relief, disaster reduction and prevention, "three prevention and three interruption" scenario

Three prevention: fire prevention, flood prevention, wind prevention, and other natural disasters;

Three interruption: power and network outages and circuit breaks. Require quick and effective emergency support measures to be taken in various extreme scenarios.

Portable floating lighting for outdoor camping, scientific research, exploration, and field search and rescue Public security night outdoor evidence collection, filming, etc

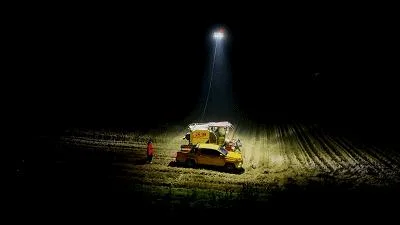

Agricultural use Crop night harvesting and night work

1.Quick deployment, 3-minute takeoff lighting
2.Highly flexible, adjustable from 3 to 50 meters 3.Hovering stability, RTK centimeter level positioning
4.Automatic cable reel in/out, no need for manual rewinding
5.Large lighting range, 5000 to 8000 square meters
6.Easy to operate, one click takeoff and landing

Drone Specifications Advantages
1. Outdoor portable lighting, carried by one person, can hover in the air for a long time
2. Hanging overhead lighting, uniform lighting, and large coverage area
3. No need for professional training, anyone can quickly get started
4. Adjustable brightness of lighting, adjustable color temperature of lighting, and adjustable flood or spotlight
5. It can be placed on the ground for use or moved on the vehicle for use
6. Can be equipped with different modules according to needs, such as pan tilt camera, broadcasting and shouting, etc
7. Equipped with outdoor power supply function, it can provide power to outdoor low-power equipment
8. The product has a wide range of expandable modules, which can be installed with modules such as shouting and searchlights

1. Wheelbase: 350mm, quadcopter, carbon fiber propeller;
2. Empty weight: ≤ 1500g (including backup battery and air module);
3. MTOW:≥2400g;
4. Tethered hovering height:5m -50m;
5. Tethered continuous flight time:≥24h;
6. Maximum ascend speed:1m/s(Line control)3m/s(Remote control)
Maximum descent speed:3m/s(Line control)2m/s(Remote control)
7. Maximum wind resistance: Level 5;
8. Protection level: IP55 (body);
9. Backup battery life: ≥ 2 minutes (for emergency landing);
10. Ambient Temperature:-20 ºC - 50ºC;
11. Flight control: Supports GPS/GLONASS dual-mode satellite positioning, with three redundant GPS/IMU module design to improve flight reliability;
12. Input voltage:220VAC
13. Output voltage:260-320VDC
14. Recommended generator power:≥2.2kw
15. Stable working time of tethering:≥24h
16. Tether cable length:≤50m
17. Ground module backup battery:2500mah
18. Lighting power:≥600W
19. Luminous flux:≥100000 lm(±10%)
20. Lighting range:≥8000m2
21. Working height: 5M-50M Adjustable

Single light small 3-axis gimbal (Optional dual light version)

1,Size:51x43.3x61.7mm
2,Control angle range: -45 °~45 ° (rolling); 90 °~10 ° (pitch)- 90 °~90 ° (direction)
3, Control accuracy:0.1°
4, Resolution:2K
5, Weight:61g
6, Working temperature:-10°~50°
7, Input voltage:7.4v~74v
8, Output interface: Ethernet port
9, Specifications:1/2.7 sensor 10,EFL:2.4mm

High power matrix LED floodlighting module

1. Lighting power: ≥ 600W
2. Luminous flux: ≥ 100000 lm (± 10%)
3. Lighting range: ≥ 8000m2
4. Working height: ≥ 50m;

FAQ

1. **Q: What is unique about MYUAV's tethered drones? **.
**A:** MYUAV Technology focuses on the development of tethered unmanned aerial systems with high load capacity and stability, which is unique in the use of advanced tethered technology, can stay in the air for a long time to perform tasks, while providing continuous power through the ground mooring, supporting high-power loads such as communication relay equipment, monitoring equipment, etc. Ensure that the drone can operate continuously at a specific altitude.

2. **Q: How much weight can MYUAV's heavy Payload tethered UAV carry? **.
**A:** MYUAV has successfully developed and released a number of tether UAs in different payload classes, including relay UAs in the 15kg to 30kg class and the higher 12KW-60KG tether system, which means that its UAS are able to carry considerable payloads for operation.

3. **Q: What are the application scenarios of Tethered drones? **.
**A:** MYUAV's tether UAVs are suitable for a variety of application scenarios, such as emergency communication relay, long-term high-altitude monitoring, environmental monitoring, geological exploration, security protection, and temporary network construction in special occasions, which require long-term aerial hovering and continuous work.

4. **Q: Does MYUAV have its own on-board power technology? **.
**A:** Yes, MYUAV Technology has developed a 30kW onboard power supply for tethered UAVs, which not only broadens the application range of tethered UAVs in the field of large loads, but also improves the performance of UAVs in complex environments and long-term endurance tasks, meeting the market demand for high-efficiency, high-power UAVs power supply.

5. **Q: Have tethered UAVs participated in actual exercises or project deployments? **.
**A:** Absolutely. MYUAV's tether UAV communication relay system has participated in communication support exercises organized by different departments across provinces for many times, and has shown efficient and stable communication performance under actual combat conditions, proving the reliability and adaptability of its products. These successful cases reflect the value and competitiveness of Maiuway technology products in practical applications.

Myuav's products are mainly used in tethered lighting, communication relay, environmental monitoring, and other fields. In the domestic market, the company has accumulated a large number of customers, including leading companies in the power, communication, environmental protection industries, and has obtained more than ten patent authorizations.

In the international market, we have established long-term cooperative relationships with multiple overseas companies and has conducted business in Europe, the Middle East, America and other regions.

MYUAV aims to build solid products and services, committed to providing high-standard tethered drone system solutions for global customers.
