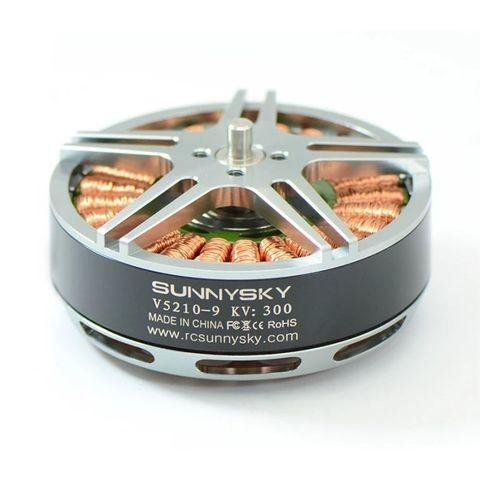

SUNNYSKY V5210 300KV High Efficiency Brushless Motor for Multi-Rotor Drones

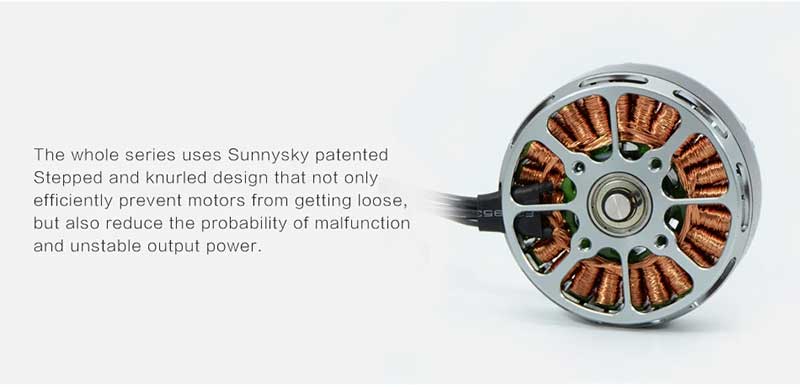

Sunnysky V series of motors are specially designed power for long-endurance multirotor aircraft. Designing style of the whole series are high efficiency, stable stable structure, light weight, high consistency etc.. Those motors can produce enough torque at low RPM and work at peak efficiency during flight.

Sunnysky V5210 kv300 brushless motor is compatible with the 17"-22" propellers, the max thrust can reach to 5600g. We suggest you

Specifications:

Motor Model / KV	V5210/ KV300
Stator/Rotor Poles	24N28P
Internal resistance	76mΩ
Motor size	φ59*31.1mm
Shaft diameter	4.0mm
AWG	20AWG 600mm
Motor weight(wire included)	200g
Motor weight(wire excluded)	No data
Rated operational voltage	4-6S
No-load current	0.9A/10V
Maximum continuous power	1100W
Maximum continuous current	44A/30s
ESC recommended use	40-60A
Propeller size recommended use	17 “ 18” 20“ 22” Propellers

Test Report:

Prop(inch)	Voltage(V)	RPM	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	Load temperature in 100% throttle
EOLO CN17*6.2	22.2	2344	1.7	500	38	13.25	60℃
		2831	2.9	750	64	11.65
		3266	4.3	1000	95	10.48
		3585	5.75	1250	128	9.79
		3969	7.4	1500	164	9.13
		4247	9.1	1750	202	8.66
		4492	11.2	2000	249	8.04
		4765	13.2	2250	293	7.68
		5000	15.5	2500	344	7.27
		5337	18.2	2806	404	6.94
	25	2274	1.6	500	40	12.50
		2813	2.65	750	66	11.32
		3201	3.8	1000	95	10.53
		3546	5.2	1250	130	9.62
		3901	6.7	1500	168	8.96
		4195	8.3	1750	208	8.43
		4445	10	2000	250	8.00
		4716	12	2250	300	7.50
		5000	13.9	2500	348	7.19
		5292	16.1	2750	403	6.83
		5519	18.2	3000	455	6.59
		5858	21.8	3390	545	6.22
EOLO C18	22.2	2180	1.6	500	36	14.08	80℃
		2606	2.8	750	62	12.07
		2974	4.1	1000	91	10.99
		3363	5.5	1250	122	10.24
		3684	7.2	1500	160	9.38
		3998	8.9	1750	198	8.86
		4279	10.9	2000	242	8.27
		4528	12.9	2250	286	7.86
		4768	15	2500	333	7.51
		5003	17.6	2750	391	7.04
		5246	19.8	3000	440	6.83
	25	2200	1.5	500	38	13.33
		2616	2.5	750	63	12.00
		3014	3.7	1000	93	10.81
		3400	5	1250	125	10.00
		3694	6.4	1500	160	9.38
		3973	7.9	1750	198	8.86
		4264	9.6	2000	240	8.33
		4534	11.4	2250	285	7.89
		4770	13.5	2500	338	7.41
		4980	15.45	2750	386	7.12
		5182	17.6	3000	440	6.82
		5759	24	3670	600	6.12
EOLO C20	22.2	1849	1.5	500	33	15.02	100℃
		2247	2.5	750	56	13.51
		2560	3.7	1000	82	12.17
		2893	5.1	1250	113	11.04
		3152	6.6	1500	147	10.24
		3411	8.2	1750	182	9.61
		3585	10.15	2000	225	8.88
		3850	12.2	2250	271	8.31
		4050	13.9	2500	309	8.10
		4234	16.3	2750	362	7.60
		4401	18.8	3000	417	7.19
		4928	26.3	3790	584	6.49
	25	1818	1.3	500	33	15.38
		2265	2.3	750	58	13.04
		2611	3.4	1000	85	11.76
		2870	4.65	1250	116	10.75
		3182	6	1500	150	10.00
		3391	7.4	1750	185	9.46
		3627	8.9	2000	223	8.99
		3806	10.65	2250	266	8.45
		4038	12.7	2500	318	7.87
		4201	14.7	2750	368	7.48
		4435	16.7	3000	418	7.19
		4825	21.1	3500	528	6.64
		5079	26	4000	650	6.15
		5380	31.3	4531	783	5.79
EOLO CN22*6.2	22.2	1481	1.3	500	29	17.33	124℃ 1min
		1760	2.2	750	49	15.36
		2038	3.35	1000	74	13.45
		2311	4.6	1250	102	12.24
		2540	5.9	1500	131	11.45
		2501	7.5	1750	167	10.51
		2868	9.1	2000	202	9.90
		3053	10.9	2250	242	9.30
		3234	12.9	2500	286	8.73
		3316	14.9	2750	331	8.31
		3515	17.2	3000	382	7.86
		3776	22	3500	488	7.17
		4034	27.7	4000	615	6.50
		4399	36.9	4820	819	5.88
	25	1502	1.2	500	30	16.67
		1789	2	750	50	15.00
		2060	3	1000	75	13.33
		2308	4.2	1250	105	11.90
		2515	5.4	1500	135	11.11
		2700	6.7	1750	168	10.45
		2892	8.2	2000	205	9.76
		3065	9.8	2250	245	9.18
		3233	11.5	2500	288	8.70
		3363	13.6	2750	340	8.09
		3536	15.5	3000	388	7.74
		3788	19.9	3500	498	7.04
		4065	25	4000	625	6.40
		4517	36.5	5000	913	5.48
		4710	43.8	5623	1095	5.14
